Radius Architectural wedge wire with black powder coating

Flash Architectural Wedge Wire

Flash Architectural Wedge Wire Panels

Flash Architectural Wedge Wire

Flash Z02170 C8 15x2 Aluminium with Black finish

Specification

Wedge Wire Material Aluminium
Wedge Profile (w x h) 8 x 8 mm
Aperture (A) From 8 mm to 50 mm
Support Rods 15 mm x 2 mm (not suitable for pedestrian use)
Framing As required subject to application
Finish Bare metal or Powder coated (specify RAL No. for colour)

Please note: The above information is a guide to the wide range of options available. Contact our sales team for help in selecting the correct product for your application.

Flash, Aluminium Architectural Wedge Wire pdf specification sheet

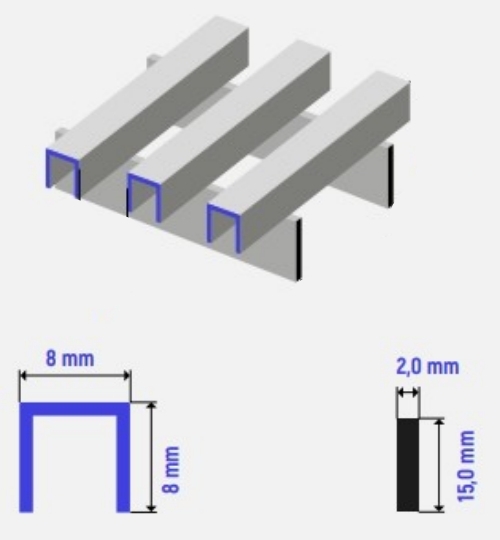

Flash Wedge Wire Panel Construction

Flash wedge wire panel construction

Flash Colour Examples

Flash Colour Examples: Black, Copper, Silver, Gold

Flash wedge wire is made from Aluminium and features a U-shaped, square profile. This reduces overall weight whilst maintaining structural integrity, making this pattern ideal for ceiling applications.

Flash Colour Examples: Black, Copper, Silver, Gold. Specify the RAL number for your required colour.

Single and Dual Panel Mounting Clips, for Fast Installation to Supporting Structure

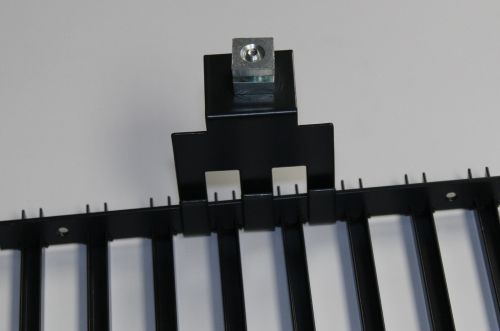

Snap-in mounting clip for a single Aluminium wedge wire ceiling panel

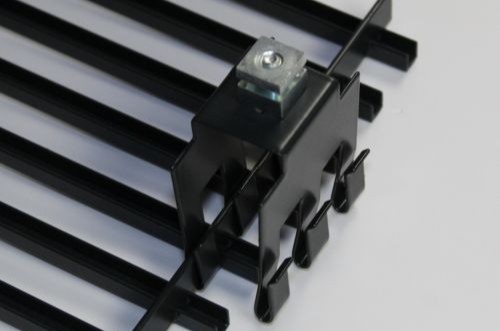

Snap-in mounting clip for two Aluminium wedge wire ceiling panels

Typical Applications

Ceiling tiles or panels, decorative façades, partitions and screens.

With comprehensive in-house 3D design facilities, we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, and delivery to site as and when required for installation.

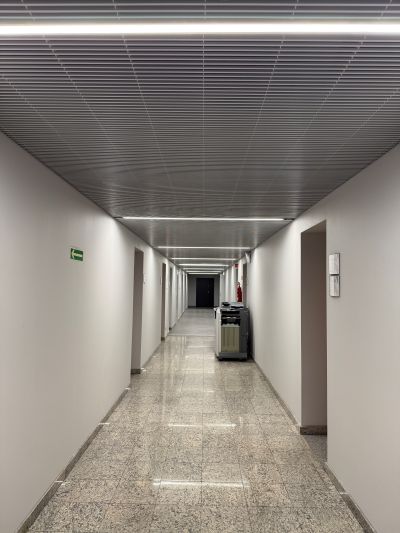

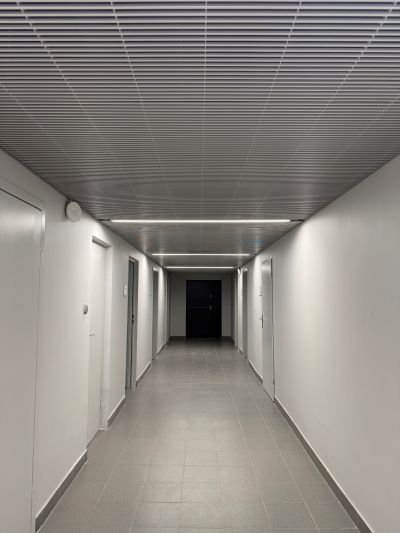

A clean, modern corridor ceiling, using Flash, Aluminium wedge wire panels.
A clean, modern corridor ceiling, using Flash, Aluminium wedge wire panels.
Progress Architectural

Flash wedge wire grill is a Progress Architecture product, supplied and distributed in the UK and Ireland by Locker Architectural.

Open post
Gladstone 32/3 Architectural Cable Mesh

Gladstone 32/3 Cable Wire Mesh

Gladstone 32/3 Cable Wire Mesh

A dense cable mesh, typically supplied in Stainless Steel and used for car park cladding, façade cladding and stairwell enclosures.

Gladstone 32/3 Cable Wire Mesh

Specifications

MATERIAL STAINLESS STEEL 316L
APERTURE 32 x 3 mm
OPEN AREA 53.3% WEIGHT 5.6 kg/m²

Gladstone 32/3 Cable Wire Mesh: printable specification sheet with 1:1 scale image

Submit Enquiry



Material Availability

Made to order in 304L or 316L Stainless Steel.

Finishes

Supplied in natural finish material only.

Fabrication

Locker Architectural can supply this mesh with eyebolts or hangers fitted, as per our installation system.


Gladstone 32/3 Architectural cable wire mesh is a Progress Architecture product, supplied and distributed in the UK and Ireland by Locker Architectural.

Open post
Harmonia cable mesh

Harmonia Cable Wire Mesh

Harmonia Cable Wire Mesh

Harmonia Cable Wire Mesh

Specifications

Material Stainless Steel 316L or 304L
Aperture Size (h x w)  1 x 19 mm
Mesh Thickness 3.4 mm
Open Area 48.5 % Weight 4 kg/m²
Max. Roll Width 4 metres

Harmonia Cable Wire Mesh: pdf specification sheet

Availability

Typically available in Stainless Steel 304L and 316L. Other materials available on request.

Typical Applications

Interior and furniture cladding, façades, drapes and feature walls.

With comprehensive in-house 3D design facilities, we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, and delivery to site as and when required for installation.

Progress Architecture

Harmonia Architectural cable wire mesh is a Progress Architecture product, supplied and distributed in the UK and Ireland by Locker Architectural.

Open post
Huskisson 1540 Cable Wire Mesh

Huskisson 1540 Cable Wire Mesh

Huskisson 1540 Cable Wire Mesh

Huskisson 1540 Cable Wire Mesh

Specifications

Material Stainless Steel 316L or 304L
Aperture Size (h x w)  4 x 15 mm
Mesh Thickness 4.5 mm
Open Area 64.4 % Weight 3.7 kg/m²
Max. Roll Width 4 metres

Huskisson 1540 Cable Wire Mesh: pdf specification sheet

Availability

Typically available in Stainless Steel 304L and 316L. Other materials available on request.

Typical Applications

Interior and furniture cladding, façades, drapes and feature walls.

With comprehensive in-house 3D design facilities, we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, and delivery to site as and when required for installation.

Progress Architecture

Huskisson 1540 Architectural cable wire mesh is a Progress Architecture product, supplied and distributed in the UK and Ireland by Locker Architectural.

Open post
Manhattan XL expanded metal mesh

Manhattan XL Architectural Expanded Metal

Manhattan XL Architectural Expanded Metal

Manhattan XL Expanded Metal Mesh in Aluminium

Download PDF Technical Sheet

Expanded metal mesh combines strength and rigidity with a high percentage of open area for air flow, making it suitable for a wide range of decorative and functional applications. The precise level of screening and open area can be tailored to your requirements.

Dependent on your application and criteria, Manhattan XL expanded metal mesh is available in the following materials:

  • Mild Steel
  • Pre-galvanised Steel
  • Aluminium
  • Corten Steel, also known as weathering steel See the image of the sample below

A secondary powder-coated, or anodised (aluminium only) finish can also be applied in a myriad of different colours and effects.

Weathered steel expanded mesh after weathering

This sample of Manhattan XL expanded metal mesh in Corten steel shows the finish patina after 3 weeks of exposure to the British weather.

Specifications



Pitch (mm) Thickness (mm) Weight (Kg/m2) Open Area (%)
Long way Short Way Material Total Aluminium Mild Steel Visual Air flow
250 90 1.5 39 2.7 7.9 41 78
250 90 2 39 3.6 10.5 41 78
250 90 3 39 5.4 15.7 41 78
All specifications are subject to manufacturing tolerances

Standard Panel Sizes

  • 1,000mm x 2,000mm
  • 1,250mm x 2,500mm
  • 1,500mm x 3,000mm

Bespoke panel sizes are available on request.

Applications

Manhattan XL has a large aperture and open area for air flow and light penetration, with a good level of screening.
This makes it ideal for a number of different applications, including but not limited to:

Locker manufacture the finished article, including cutting to size, framing, finishing, and ancillary components.

In case of any bespoke requirements, our experienced in-house design and fabrication team will develop and supply the system and components you need to install goods on-site.

Contact our sales team to talk to us about your specific requirements.

Open post
Light Z05060 Silver Coloured Wedge Wire

Light Architectural Wedge Wire

Light Architectural Wedge Wire Grille

Light Z05060 Silver Wedge Wire 34Sb Stainless steel with natural finish

Light Z05060 Silver Wedge Wire 34Sb Stainless steel with natural finish

Specification

Wedge Wire Material Stainless Steel or Mild Steel
Wedge Profile (w x h) 2.8 x 5 mm
Aperture (A) From 2 mm to 50 mm
Support Rods Dimensions and pitch to suit load
Framing As required for application
Finish Bare metal or Powder Coat (specify RAL No. for colour)

Please note: The above information is a guide to the wide range of options available. Contact our sales team for help in selecting the correct product for your application.

Light Architectural Wedge Wire pdf specification sheet

Light wedge wire profile and panel construction

Light wedge wire profile and panel construction

LIGHT Colour Examples: Copper, Silver, Black, Gold

LIGHT Colour Examples: Copper, Silver, Black, Gold. Specify using RAL number

Typical Applications

Balustrade infill panels, façades, air distribution and drainage grilles, floor and stair grilles, fountain grilles, ceiling grilles, solar shading and bespoke applications which include seating and street furniture.

With comprehensive in-house 3D design facilities, we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, and delivery to site as and when required for installation.

Projects using this Wedge Wire Grille

Progress Architectural

LIGHT wedge wire grill is a Progress Architecture product, supplied and distributed in the UK and Ireland by Locker Architectural.

Open post
Reflex Z04066 Silver Coloured Wedge Wire

Reflex Architectural Wedge Wire

Reflex Architectural Wedge Wire Grille

Reflex Z04066 28Sb Stainless steel with natural finish

Reflex Z04066 28Sb Stainless steel with natural finish

Specification

Wedge Wire Material Stainless Steel or Mild Steel
Wedge Profile (w x h) 2.2 x 4.5 or 5 mm
Aperture (A) From 2 mm to 50 mm
Support Rods Dimensions and pitch to suit load
Framing As required for application
Finish Bare metal or Powder Coat (specify RAL No. for colour)

Please note: The above information is a guide to the wide range of options available. Contact our sales team for help in selecting the correct product for your application.

Reflex Architectural Wedge Wire pdf specification sheet

Reflex wedge wire profile and panel construction

Reflex wedge wire profile and panel construction

Reflex Colour Examples: Black, Gold, Silver, Copper

Reflex Colour Examples: Black, Gold, Silver, Copper. Specify using RAL number

Typical Applications

Balustrade infill panels, façades, air distribution and drainage grilles, floor and stair grilles, fountain grilles, ceiling grilles, solar shading and bespoke applications which include seating and street furniture.

With comprehensive in-house 3D design facilities, we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, and delivery to site as and when required for installation.

Progress Architectural

Reflex wedge wire grill is a Progress Architecture product, supplied and distributed in the UK and Ireland by Locker Architectural.

Open post
Elios wedge wire colour sample - black

Elios Architectural Wedge Wire

Elios Architectural Wedge Wire Grilles

Elios wedge wire in silver colour

Elios Z06050 42Sb 10x2 Stainless steel with natural finish

Specification

Wedge Wire Material Stainless Steel or *Pro-ZINAL® Coated Mild Steel
Wedge Profile (w x h) 3.4 x 6.5 mm
Aperture (A) From 2 mm to 50 mm
Support Rods Dimensions and pitch to suit load
Framing As required for application
Finish Bare metal or Powder Coat (specify RAL No. for colour)

Please note: The above information is a guide to the wide range of options available. Contact our sales team for help in selecting the correct product for your application.

*Pro-ZINAL® is a metallic coating of Zinc and Aluminium alloy, which is used to protect traditional Carbon steel. It ensures durability and a high resistance to corrosion, even in welded areas.

Elios Architectural Wedge Wire pdf specification sheet

Elios wedge wire profile and panel construction

Elios wedge wire profile and panel construction

ELIOS Colour Examples: Black, Copper, Gold, Silver

ELIOS Colour Examples: Black, Copper, Gold, Silver. Specify using RAL number

Typical Applications

Balustrade infill panels, façades, air distribution and drainage grilles, floor and stair grilles, fountain grilles, ceiling grilles, solar shading and bespoke applications which include seating and street furniture.

With comprehensive in-house 3D design facilities, we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, and delivery to site as and when required for installation.

Progress Architectural

Elios wedge wire grill is a Progress Architecture product, supplied and distributed in the UK and Ireland by Locker Architectural.

Open post

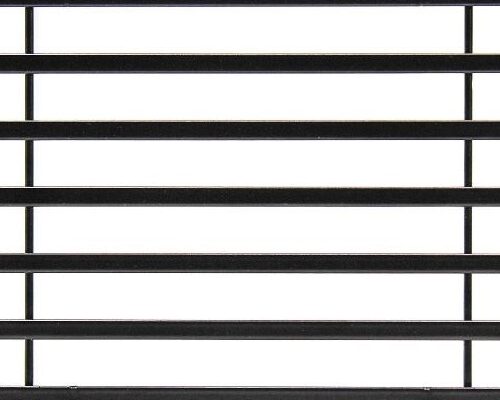

Radius Architectural wedge wire with black powder coating

Radius Architectural Wedge Wire

Radius Architectural Wedge Wire Grille

Radius Architectural Wedge Wire

Radius Z10105 45Sa 8,4x2 Pro-ZINAL coated mild steel with black, powder coated finish

Specification

Wedge Wire Material Stainless Steel or *Pro-ZINAL® Coated Mild Steel
Wedge Profile (w x h) 3.5 x 4.5, 4.5 x 4.5, 5.0 x 5.0 mm
Aperture (A) From 2 mm to 50 mm
Support Rods Dimensions and pitch to suit load
Framing As required subject to application
Finish Bare metal or Powder Coat (specify RAL No. for colour)

Please note: The above information is a guide to the wide range of options available. Contact our sales team for help in selecting the correct product for your application.

*Pro-ZINAL® is a metallic coating of Zinc and Aluminium alloy, which is used to protect traditional Carbon steel. It ensures durability and a high resistance to corrosion, even in welded areas.

Radius Architectural Wedge Wire pdf specification sheet

Radius Wedge Wire Panel Construction

Radius wedge wire panel construction

Radius Colour Examples

Radius Colour Examples: Black, Copper, Silver, Gold

Radius wedge wire features a profile with curved sides. This reduces overall weight whilst maintaining structural integrity and helps to prevent the build up of dirt on the wedge.

Radius Colour Examples: Black, Copper, Silver, Gold. Specify the RAL number for your required colour.

Typical Applications

Balustrade infill panels, façades, air distribution and drainage grilles, floor and stair grilles, fountain grilles, ceiling grilles, solar shading and bespoke applications which include seating and street furniture.

With comprehensive in-house 3D design facilities, we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, and delivery to site as and when required for installation.

Progress Architectural

Radius wedge wire grill is a Progress Architecture product, supplied and distributed in the UK and Ireland by Locker Architectural.

Open post
Portland Manilla 60 pre-crimped Architectural Mesh

Portland Manilla 60 Pre-Crimped Architectural Wire Mesh

Portland Manilla 60 Pre-Crimped Architectural Wire Mesh

A medium density, flat wire, intermediate crimp woven mesh, typically supplied in Stainless Steel and used for balustrades, facades, decorative radiator grilles, security panels and elevator cladding.

Hebrides Traditional Pre-crimped Wire Mesh

Specifications

MATERIAL STAINLESS STEEL 316L
APERTURE 60 mm WIRE 5 x 1.2 mm flat wire
OPEN AREA 55% WEIGHT 3.6 kg/m²

Portland Manilla 60 Pre-Crimped Wire Mesh: printable specification sheet with 1:2 scale image.

Submit Enquiry.

Material Availability

Made to order in Mild or Stainless Steel, Aluminium, Phosphor Bronze, Copper and Brass.

Finishes

Powder coated finish available, provided the mesh is secured in a frame.

Fabrication

Locker Architectural can supply this mesh secured in a frame of your choosing.

Progress Architecture

Portland Manilla 60 architectural wire mesh is a Progress Architecture product, supplied and distributed in the UK and Ireland by Locker Architectural.
