Midtown Cycle Vault London, Bloomsbury Security Screens Brocklebank 20/5

Midtown Cycle Vault, Bloomsbury, London

Midtown Cycle Vault, Bloomsbury, London


mid-town-cycle-hub-1-large
mid-town-cycle-hub-4-large
mid-town-cycle-hub-3-large
mid-town-cycle-hub-5-large
mid-town-cycle-hub-2-large
previous arrow
next arrow
mid-town-cycle-hub-1-large
mid-town-cycle-hub-4-large
mid-town-cycle-hub-3-large
mid-town-cycle-hub-5-large
mid-town-cycle-hub-2-large
previous arrow
next arrow

About the Project

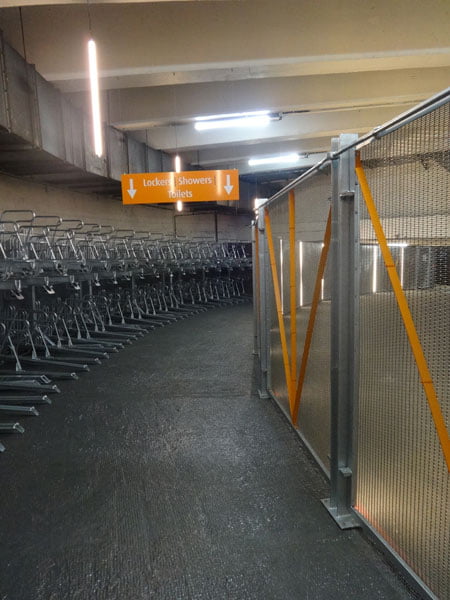

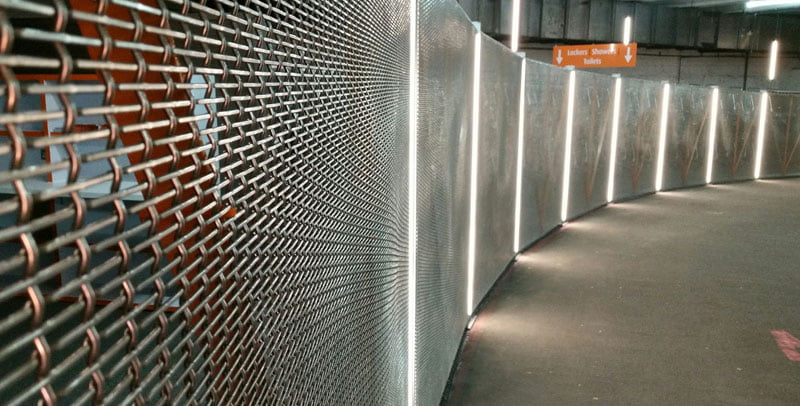

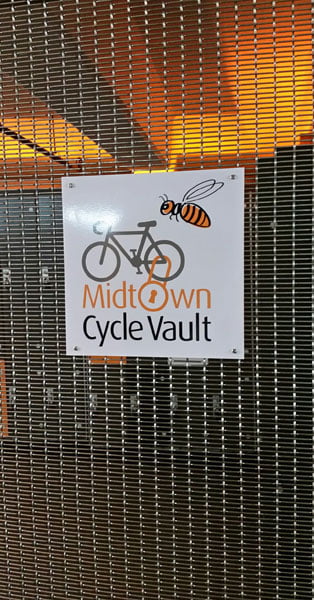

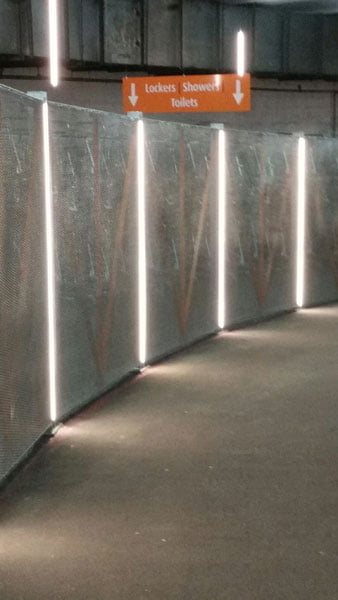

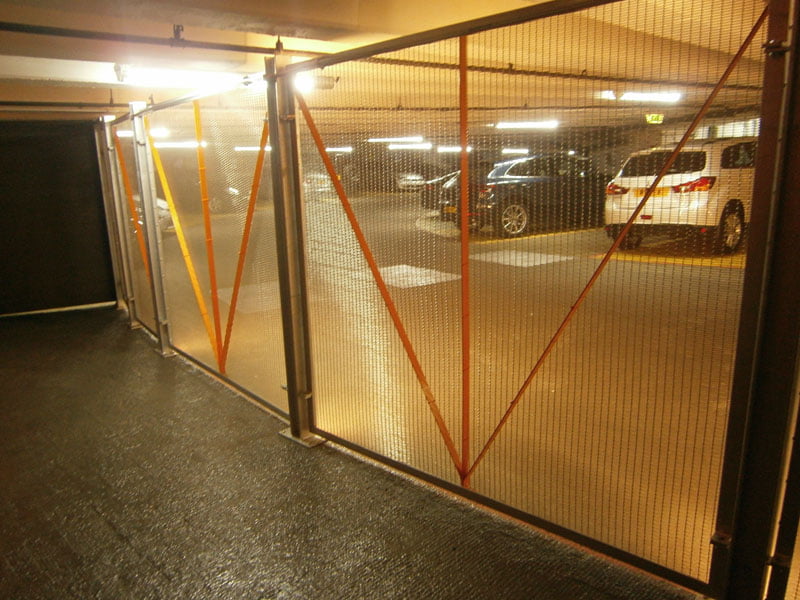

Brocklebank 20/5 architectural pre-crimped wire mesh installed as security screening at the underground Midtown Cycle Vault at Bloomsbury Square, London. Described as "the safest place in Midtown to leave your bike" the mesh panels provide a secure barrier between a private residential car park and a public cycle facility in the exclusive Bloomsbury Square area of London. Vertical strip lighting and diagonal bracing bars provide a contemporary design in keeping with the surroundings.

The Stainless steel AISI316L mesh pattern was modified for this project to aperture 25mm x 5mm. The mesh was fabricated into 50cm x 50cm hot dipped galvanised frames with powder coated bracing bars in Orange RAL 2003.

Architect: Kenny Sykes, Associate Architect at Goldstein Ween Architects



Open post
High Holborn Cycle Hub London Security Screens ImagePerf

High Holborn Cycle Hub, London

High Holborn Cycle Hub, London


holborn-cycle-hub-2-large
holborn-cycle-hub-5-large
holborn-cycle-hub-6-large
holborn-cycle-hub-4-large
holborn-cycle-hub-1-large
holborn-cycle-hub-3-large
previous arrow
next arrow
holborn-cycle-hub-2-large
holborn-cycle-hub-5-large
holborn-cycle-hub-6-large
holborn-cycle-hub-4-large
holborn-cycle-hub-1-large
holborn-cycle-hub-3-large
previous arrow
next arrow

About the Project

RMIG ImagePerf mesh is used to create a secure and striking bespoke cycle storage enclosure for the use of tenants within a privately owned underground car park facility in the prestigious High Holborn area of central London.

The bicycle and chevron shapes are created using holes of varying diameter on a triangular pitch. 3mm thick natural finish aluminium sheets are fixed to extrusion posts provided by Locker Architectural who also supplied an automated sliding door screen with key fob access.

Customer: Ergro Limited
