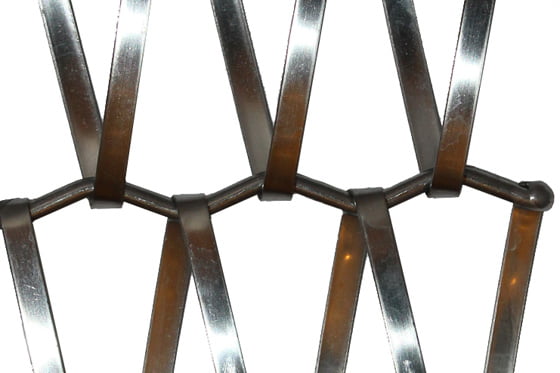

Eiffel 40 Spiral Mesh

Eiffel 40 Spiral Mesh


MaterialStainless Steel 316L
Cross Rods5 mmPitch99.5 mm
Spiral7 x 1 mmPitch40 mm
Open Area58%Weight4.8 kg/m²

Eiffel 40 Spiral Mesh: printable specification sheet with 1:1 scale image


Only available in Stainless Steel.

Maximum width for all specifications is 6000 mm, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015 and Achilles 'Building Confidence' Level 4.

With comprehensive in house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.
