Paxton Spiral Mesh

Paxton Spiral Mesh


MaterialStainless Steel 316L
Cross Rods2 mmPitch8 mm
Spiral2.9 x 1.1 mmPitch21 mm
Open Area20.1%Weight15.5 kg/m²

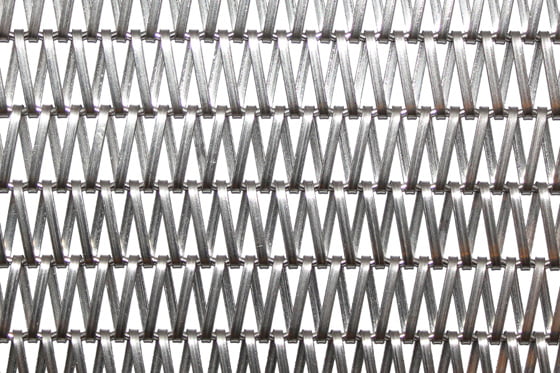

Paxton Spiral Mesh: printable specification sheet with 1:1 scale image


Only available in Stainless Steel.

Maximum width for all specifications is 6000mm, subject to stock availability and minimum order quantity.

Typical Applications

Façades, security screens, brise soleil and drapes.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2015 and Achilles 'Building Confidence' Level 4.

With comprehensive in house 3D design facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.
