Brocklebank 16/5 Pre-crimped Wire Mesh

A medium density, pre-crimped woven mesh typically supplied in Stainless Steel and Aluminium, used for solar shading and ceilings.

Brocklebank 16/5 Pre-crimped Wire Mesh

Specifications

MATERIAL ALUMINIUM
CRIMPED WIRE 2 mm APERTURE 15.5 mm
FLAT TOP WIRE 2 mm APERTURE 5 mm
OPEN AREA 63% WEIGHT  1.84 kg/m²

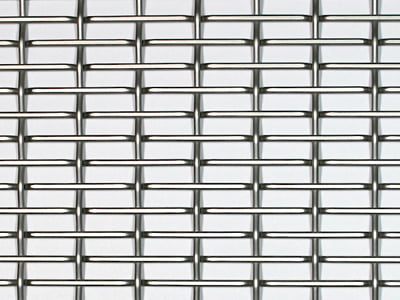

Brocklebank 16/5 Pre-Crimped Wire Mesh: printable specification sheet with 1:1 scale image.

Submit Enquiry.

Brocklebank is a LOKMESH® high security mesh with a Flat Top weave, where the wire is pre-crimped and woven in such a way as to make the surface of one side flat and smooth.

LOKMESH® Flat Top Mesh

Material Availability

Made to order in Stainless Steel, Mild Steel, Aluminium, Phosphor Bronze, Copper and Brass.

Finishes

Powder coated finish available, provided the mesh is secured in a frame.

Fabrication

Locker Architectural can supply this mesh secured in a frame of your choosing.
